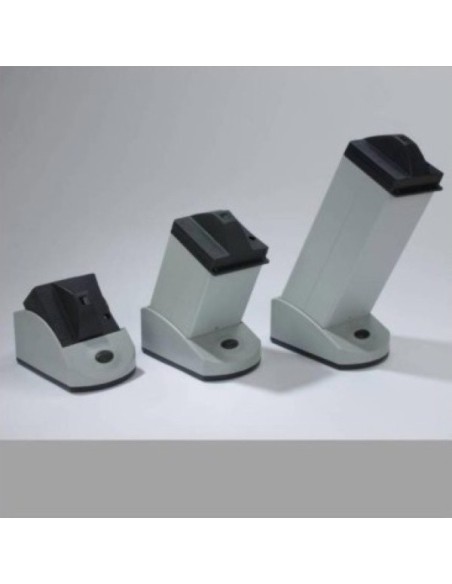

COLORIMETER LOVIBOND® COMPARATOR 2000 SYSTEM

The Comparator 2000 is a short-distance (up to 40 mm) instrument for visually matching specimens with relatively dark colors.

learn more

REQUEST BROCHURE

MAIN FEATURES

A flexible modular system for a colour visual measurement

Using a suitable comparator instrument, the sample is visually matched to calibrated standards, in glass in unalterable colour, housed in analysis disks. Comparator 200 is a short path instrument (up to 40 mm) to visually match samples with relatively dark colours. Nessleriser systems are longer path instruments for matching a sample column in a glass cylinder of suitable length. They are designed to measure unsaturated samples, below Comparator 2000's sensibility. A selection of Lovibond® colour measurement disks for use with Comparator 2000 system is displayed below.

Colour scale	Disk	Covered range	Instrument	Required accessories
Colour ASTM	4/81	1, 2, 3, 3,5, 4, 4,5, 5 units 1)	Comparator 2000+	33 mm cell W680/OG/33
	4/82	0,5, 1, 2, 3, 3,5, 4, 4,5 units 1)	Comparator 2000+	33 mm cell W680/OG/33
Avio gasoline	4/78	Blu, Green, Brown, Purple (min e max for each)	Nessleriser 2250	200 mm cylinders, DB421
coloured	4/79	Red (min e max)	Nessleriser 2250	200 mm cylinders, DB421
Gardner colour	4/30AS	1, 2, 3, 4, 5, 6, 7, 8, 9 units	Comparator 2000+	10 mm cell W680/OG/10
	4/30BS	10, 11, 12, 13, 14, 15, 16, 17, 18 units	Comparator 2000+	10 mm cell W680/OG/10
Pt-Co/Hazen/APHA	4/28	50, 75, 100, 150, 200, 250, 300, 400, 500 mg Pt/l	Comparator 2000+	40 mm cell W680/OG/40
	4/28A	200, 225, 250, 300, 350, 400, 450, 500 mg Pt/l	Comparator 2000+	40 mm cell W680/OG/40
	NSH	10, 20, 30, 40, 50, 60, 70, 80, 90 mg Pt/l	Nessleriser 2150	113 mm cylinders AF 306/P
	NSB	70, 85, 100, 125, 150, 175, 200, 225, 250 mg Pt/l	Nessleriser 2150	113 mm cylinders AF 306/P
	NSX	50, 60, 70, 80, 100, 150, 200, 250, 300 mg Pt/l	Nessleriser 2150	113 mm cylinders AF 306/P
	CAA	0, 2,5, 5,0, 7,5, 10, 15, 20, 25, 30 mg Pt/l	Nessleriser 2250	250 mm cylinders DB 420
	CBB	30, 35, 40, 45, 50, 55, 60, 65, 70 mg Pt/l	Nessleriser 2250	250 mm cylinders DB 420
	1209/1	0, 2,5, 5,0, 7,5, 10, 15, 20, 25, 30 mg Pt/l	Nessleriser 1209 2)	100 ml cylinders DB 423
	1209/2	30, 35, 40, 45, 50, 55, 60, 65, 70 mg Pt/l	Nessleriser 1209 2)	100 ml cylinders DB 423
Optional items for individual applications
Light units Daylight 2000		A bench standardised light source to guarantee constant lighting conditions, for an accurate colour measurement, particularly when the sample has a very light colour.

1) Restricted range used by UK MoD for F76 type diesel.
2) Compliant with path length requirements specified in ASTM D1209

Analyses kit based on Comparator 2000 system

Available for most common used colour scales and colorimetric analyses, these kits are a convenient means to order the complete range of required apparatuses.

Type	Colour scale	Range	Included equipement
AF 334	Gardner Colour	1 - 18 units	Lovibond^® Comparator 2000+with Daylight 2000 lighting unit, Gardner disk 4/30 AS & 4/30 BS, W680/OG/10 mm fused glass cell path length
AF 329	Colour Pt-Co/Hazen/APHA	0 - 250 mg Pt/l	Nessleriser 2150 with Daylight 2000 lighting unit and Nessler cylinders, Nessleriser 2250 upgrade with Nessler cylinders, Pt-Co/Hazen disks CAA, CAB and NSB, holder to use Nessleriser with natural light
AF 325	Colour Pt-Co/Hazen/APHA	10 - 250 mg Pt/l	Nessleriser 2150 with Daylight 2000 lighting unit and Nessler cylinders, Pt-Co/Hazen NSH e NSB disks,holder to use Nessleriser with natural light
AF 328	Colour Pt-Co/Hazen/APHA, low range	0 - 70 mg Pt/l	Nessleriser 2250 with Daylight 2000 lighting unit and Nessler cylinders Pt-Co/Hazen CAA e CAB, disks holder to use Nessleriser with natural light
AF 327	Colore Pt-Co/Hazen/APHA, low range, (ASTM D 1209)	0 - 70 mg Pt/l	Nessleriser 1209 with Daylight 2000 lighting unit and Nessler 100 ml (288 mm) cylinders Pt-Co/Hazen 1209/1 and 1209/2 disks, deionized water
